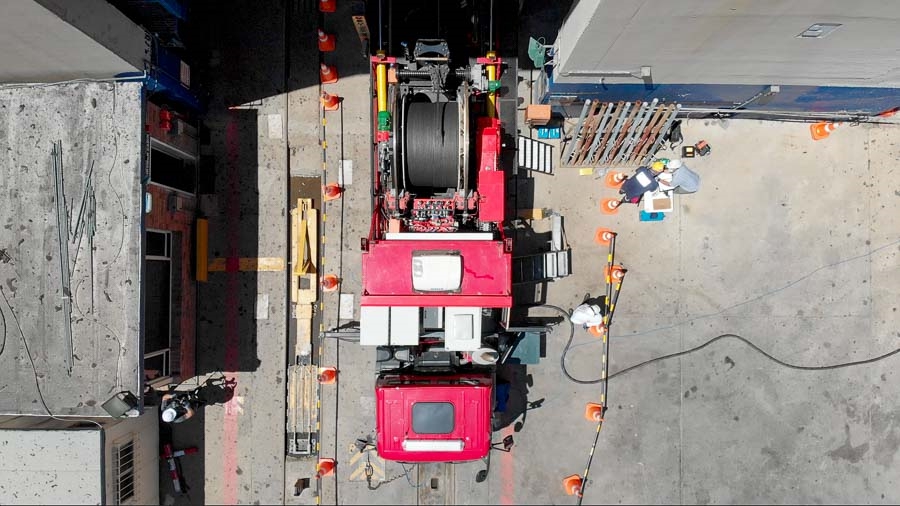

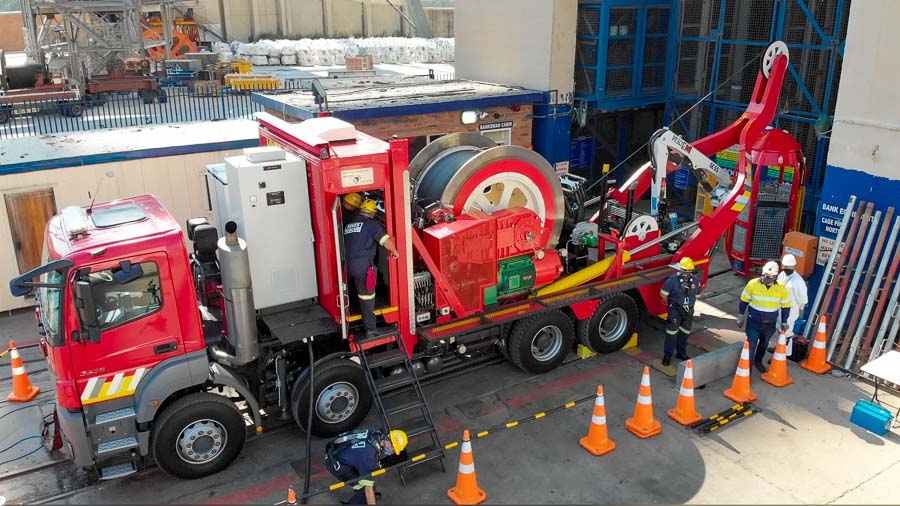

Our truck-mounted Mobile Mine Rescue Winders (MMRW) are designed to address the urgent need for rapid response and resolution to underground mining emergencies and safety incidents.
Engineered with safety and operators in mind, our MMRWs are fully roadworthy and self-powered, with patented hydraulics and winder technology, allowing rescue teams to respond faster, mitigate risk of death, and reduce mine downtime. The Ultra Deep Level Mobile Rescue Winder can reach depths of 3,000m.

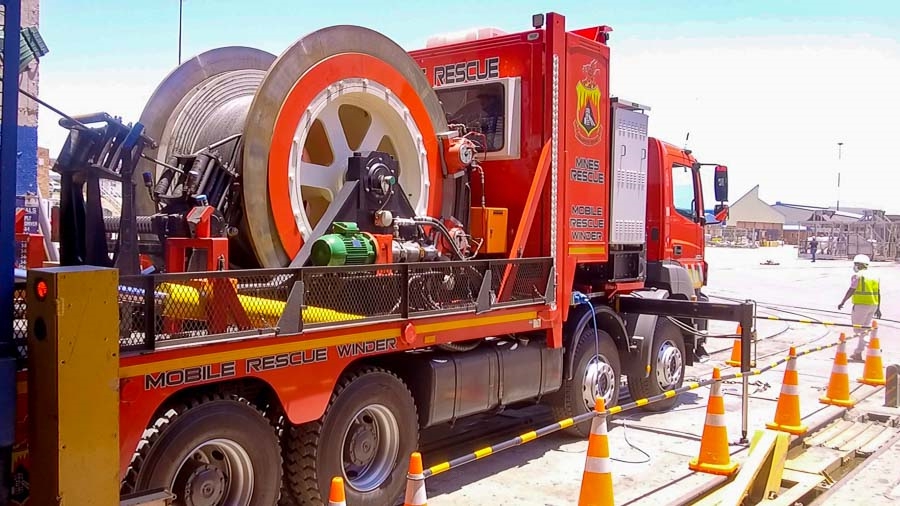

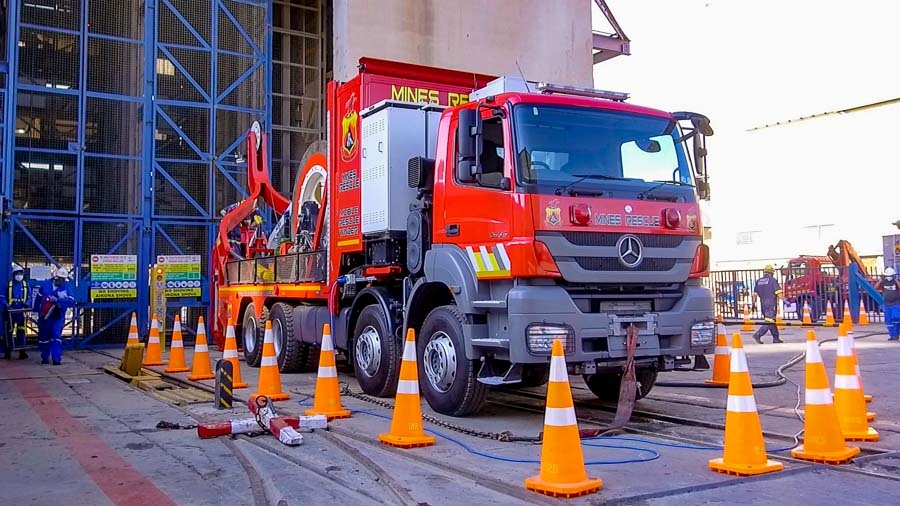

It is mounted on a Mercedes Benz Axor 3535 8 x 4 truck with rough terrain capability, and can take six people to this depth, ten people to 2,000m and 15 people to 1,000m.
1400mm Weldox drum with double brake paths, each having two Svendborg 3000 series disc brakes, 19 mm non-spin rope for unguided conveyance in a rescue situation, and an Electric drive system, powered by a diesel generator.
630 mm
1.5 m/s
Human Machine Interface (HMI) – Digital Speed indication with electronic events recorder (Safe Wind System)
Speed control device
Electronic Sounder Activated by PLC / E-lilly
E-lilly safety PLC / Control PLC / ultimate overwind limit switch
Single AC motor. 110KW, A/B, W22 IE3. 1,485 rpm
MV 3/Ph mine supply or 250 kVA generator
Four motion Tech Edge helical gearbox. Ratio 1:83

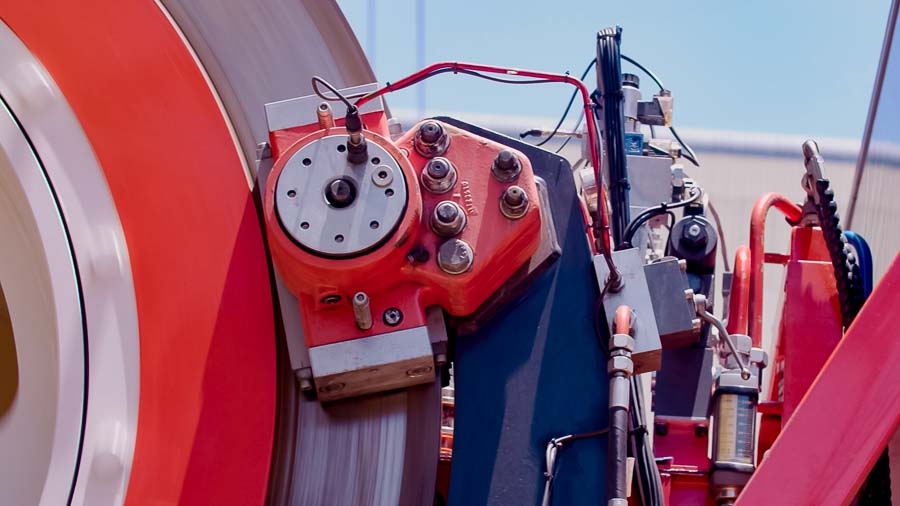

Four discs brake units on drum. High pressure, hydraulically released, spring-applied braking. Automatic application through tripping of safety circuit or manual application through brake lever
Steel 34 strand, non-spin 19 mm diameter rope. 1.842 kg/m
3 000 m / 9,800 ft
5,526 kg / 54,210 kN
360 kN

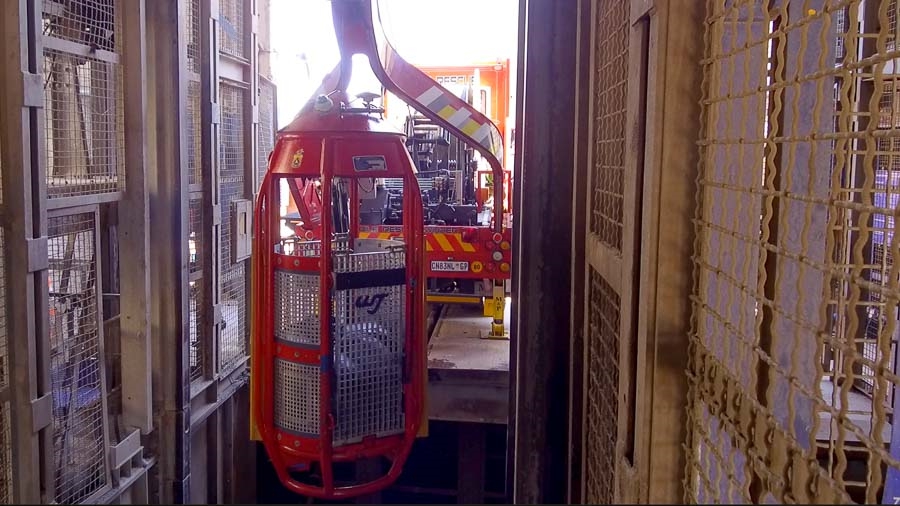

Type of conveyance Mass of conveyance & attachments Mass of Persons Mass of material Cage loaded weight Cage 900 kg / 1,984 lbs 500 kg / 1,102 lbs 100 kg / 220 lbs 1,500 kg / 3,306 lbs SPECIFICATIONS: 4
